Synthetic shape datasets

fuse_augmentations.data draws colored shapes on a canvas and writes ready-to-train datasets. It is a standalone generation utility: no file-backed dataset loader, no model, no training loop. Use it for pipeline smoke tests, augmentation demos, teaching material, and quick detector sanity checks where a real dataset is overkill.

It supports two output formats — COCO and YOLO — across four tasks — detection, segmentation, oriented bounding box (OBB), and keypoints / pose.

Install

Rendering uses Pillow, which ships as a base dependency — nothing extra to install:

pip install fuse-augmentations

Quickstart

import tempfile

from fuse_augmentations import generate_dataset

with tempfile.TemporaryDirectory() as out_dir:
    counts = generate_dataset(
        out_dir,
        num_images=100,
        fmt="coco",
        task="detection",
        class_mode="shape",
        seed=0,
    )

print(counts)

Per-split image counts

{'train': 70, 'val': 20, 'test': 10}

Pass a real path instead of the temporary directory to keep the dataset. The same call with fmt="yolo" writes an Ultralytics-style layout; generate_dataset returns the number of images written per split.

Shapes, colors, and classes

Shapes are drawn on a gray canvas at random positions, sizes, and rotations, in three colors (red, green, blue). The shape vocabulary has two families: four geometric shapes (square, rectangle, triangle, circle) and twelve animal silhouettes (duck, elephant, giraffe, fish, rabbit, camel, eagle, penguin, whale, kangaroo, flamingo, crocodile — see Animal shapes). Only the geometric four are drawn unless you opt in.

class_mode selects how object classes are derived:

class_mode	Classes
shape	all 16 shape names, in vocabulary order
color	red, green, blue
shape_color	Cartesian product, e.g. red_square (48 classes)

The class vocabulary always spans the full shape enum, independently of which shapes a run actually draws. A class id therefore means the same thing in every dataset: a giraffes-only run still declares all 16 shape classes and uses giraffe's id rather than renumbering it to 0.

rectangle (non-square) plus a random per-shape rotation give oriented boxes real orientation; a circle is rotation-invariant, so its OBB collapses to the axis-aligned box. Every animal silhouette is asymmetric, so all twelve carry orientation.

Animal shapes

Pass shapes= (or the CLI's --shapes animals) to draw the twelve animal silhouettes instead of the four geometric shapes. Each outline is asymmetric and traced from a CC0 or Public Domain Mark reference silhouette rather than hand-guessed, so every shape stays recognizable and carries real orientation under rotation. Each ships as an editable SVG under fuse_augmentations/data/zoo/<animal>.svg — open it in any vector editor or browser to inspect the outline, the keypoints, and the zoo:-namespaced provenance attributes (origin, license, attribution).

Shape	Archetype
duck	upright-bird
elephant	bulky-quadruped
giraffe	tall-thin
fish	streamlined
rabbit	compact-eared
camel	bulky-quadruped-humped
eagle	upright-bird
penguin	upright-bird
whale	streamlined-aquatic-large
kangaroo	hopping-marsupial
flamingo	long-legged-wader
crocodile	sprawling-reptile

Selecting animals

Name the members explicitly, or take the first N of them with animal_shapes():

from fuse_augmentations.data.animals import AnimalShape, animal_shapes
from fuse_augmentations.data.config import SyntheticConfig, Task

explicit = SyntheticConfig(
    task=Task.KEYPOINTS, shapes=(AnimalShape.DUCK, AnimalShape.GIRAFFE)
)  # explicit
assert explicit.shapes == (AnimalShape.DUCK, AnimalShape.GIRAFFE)

first_four = SyntheticConfig(
    task=Task.KEYPOINTS, shapes=animal_shapes(4)
)  # duck, elephant, giraffe, fish
assert first_four.shapes == (
    AnimalShape.DUCK,
    AnimalShape.ELEPHANT,
    AnimalShape.GIRAFFE,
    AnimalShape.FISH,
)  # same 4 species every call, per the declaration-order guarantee below

all_animals = SyntheticConfig(task=Task.KEYPOINTS, shapes=animal_shapes())  # all twelve
assert len(all_animals.shapes) == 12

animal_shapes(n) is a prefix of the AnimalShape declaration order, so the same n names the same species on every call — a thirteenth animal could only extend the tail of that list. shapes itself stays a plain tuple[Shape, ...] — where Shape is the GeomShape | AnimalShape union — and the helper only builds one. A count outside [0, 12] raises ValueError rather than clamping.

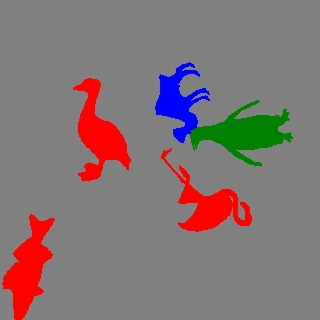

All four tasks work on animal shapes; keypoints is animal-only (the geometric shapes have no keypoint tables):

DetectionSegmentationOBBKeypoints / pose

Regenerate these clips with python examples/animate_synthetic_dataset.py --shapes animals --task all.

Tasks

Each task exposes a different annotation representation. In the looping previews below (yellow overlay), every generated image appears first bare, then with its exported annotation drawn back on. The clips share the same seeded sample stream, so the shapes line up one-for-one — only the label type differs.

DetectionSegmentationOBBKeypoints / pose

Axis-aligned boxes.

Filled-shape polygons.

Oriented boxes.

Animal silhouettes with the sixteen landmark points and skeleton edges.

Regenerate these clips with python examples/animate_synthetic_dataset.py.

Keypoints / pose

The keypoints task is available for the twelve animal silhouettes and uses one fixed, dataset-wide 16-point anatomical schema — a single set of names covers quadrupeds, birds, and swimmers, because the front_limb_* pair is whatever the animal actually has at that slot (paws, wings, or fins/flippers). left is the limb nearer the viewer, right the far one — a documented convention, since a side profile cannot truly tell left from right. Because the far point sits only slightly offset from the near one (0.8–4.1px apart at shipped instance-size defaults), left/right-paired landmarks are visually indistinguishable at default rendering sizes — worth knowing before writing a custom evaluator or training on this data.

Index	Name	Meaning
1	mouth	Mouth — snout/beak/trunk tip
2	eye	Eye landmark (hand-placed — a silhouette carries no eye)
3	ear	Ear (tip where prominent, else the ear position on the head); optional, see below
4	head	Skull centre
5	neck	Middle of the neck, halfway between head and shoulders
6	body_top	Shoulder/chest — the front-limb attachment region
7	body_bottom	Hip/pelvis — the hind-limb attachment region
8	tail	Tail tip
9	front_elbow_left	Near front-limb bend: elbow, wing wrist, or flipper bend
10	front_elbow_right	Far front-limb bend; overlaps the near one when not separately visible
11	front_limb_left	Near front-limb tip: paw/hoof, wing tip, or fin/flipper tip
12	front_limb_right	Far front limb; overlaps the near one when not separately visible
13	hind_knee_left	Near hind knee/hock bend; optional, see below
14	hind_knee_right	Far hind knee/hock bend; optional, see below
15	hind_limb_left	Near hind-limb tip (foot/hoof); optional, see below
16	hind_limb_right	Far hind limb; optional, see below

The skeleton connects mouth–head, eye–head, ear–head, the head–neck–body_top–body_bottom–tail chain, a two-segment body_top–front_elbow–front_limb chain per front limb, and a two-segment body_bottom–hind_knee–hind_limb chain per hind leg — 15 edges over 16 nodes, so an absent ear drops exactly its one edge and an absent hind leg exactly its own two, orphaning nothing. Every limb is articulated in two points because a limb's bend is the most visible pose cue on a silhouette.

Visibility follows COCO: v=2 means the point is labeled and visible inside the canvas; v=0 means it is not labeled, either because it fell outside the canvas or because the animal does not have that landmark at all (see "Absent landmarks" below). A v=0 point's coordinates are zeroed. Partial occlusion is not modeled.

Every landmark is a pure rigid transform (translate/scale/rotate) of its packaged template position — zero articulation, zero intra-class deformation — so a model trained on this data learns template identity plus a similarity-transform regression, not articulated pose; the dataset exercises the COCO/YOLO pose formats end-to-end, it is not a substitute for articulated-pose training data.

Absent landmarks

ear and the four hind-leg points (hind_knee_*, hind_limb_*) are the only landmarks an animal may lack — a whale's silhouette shows pectoral flippers (its front limbs) but no hind legs, and neither a whale nor a fish has an external ear to annotate. The packaged table carries a (nan, nan) row for an absent landmark rather than a faked point, always paired with v=0; every writer branches on that visibility flag, not on the coordinates, so an absent landmark is emitted as the documented (0.0, 0.0, v=0) placeholder with no special-casing for NaN. fish and whale lack all five (11 of 16 landmarks present); the other ten animals have all 16.

An absent landmark and a canvas-clipped landmark both serialize identically as v=0 (matching COCO's own "not labeled" convention). A custom-eval author computing per-keypoint recall or OKS naively — treating every v=0 as a detector miss — will see a systematic bias on fish and whale, whose four hind-leg points are structurally absent rather than missed.

All 16 classes are still emitted as COCO categories, but the keypoint schema and skeleton are attached only to the animal categories — the four geometric-shape categories (square, rectangle, triangle, circle) carry no keypoints/skeleton fields, since they have no landmark table to draw from. Each animal category stores one flat triple per point on each of its annotations:

{
  "categories": [
    {
      "id": 5,
      "name": "duck",
      "keypoints": ["mouth", "eye", "ear", "head", "neck", "body_top", "body_bottom", "tail", "front_elbow_left", "front_elbow_right", "front_limb_left", "front_limb_right", "hind_knee_left", "hind_knee_right", "hind_limb_left", "hind_limb_right"],
      "skeleton": [[1, 4], [2, 4], [3, 4], [4, 5], [5, 6], [6, 7], [7, 8], [6, 9], [6, 10], [9, 11], [10, 12], [7, 13], [7, 14], [13, 15], [14, 16]]
    }
  ],
  "annotations": [
    {
      "keypoints": [x1, y1, v1, "...", x16, y16, v16],
      "num_keypoints": 16
    }
  ]
}

num_keypoints counts only v>0 triples, so a whale's absent ear and hind legs drop it to 11.

YOLO pose labels extend the detection row with the same ordered triples, and data.yaml declares the shared shape plus its horizontal-flip mapping:

path: .
kpt_shape: [16, 3]
flip_idx: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15]
names:
  0: square
  4: duck

flip_idx is the identity permutation on purpose: left/right are viewer-relative here — left is the limb nearer the viewer, not the animal's anatomical left — so mirroring a side profile never turns a near limb into a far one and no landmark changes index under a horizontal flip.

Each pose row is cls cx cy w h x1 y1 v1 ... x16 y16 v16 — 53 tokens, fixed-width even for a whale whose absent hind legs still emit their zeroed 0.000000 0.000000 0 triples. Each animal ships as an editable SVG asset under fuse_augmentations/data/zoo/<animal>.svg, carrying its outline, its keypoints (with a visible skeleton overlay), and its CC0/Public Domain Mark provenance as zoo:-namespaced attributes; the placement rules and hand-editing instructions live in fuse_augmentations/data/zoo/README.md.

COCO output

Layout (Roboflow-style, one JSON per split):

shapes_coco/
  train/
    _annotations.coco.json
  val/  …
  test/ …

_annotations.coco.json follows the standard COCO object-detection schema. Category ids are 1-based:

{
  "info": { "description": "fuse-augmentations synthetic dataset" },
  "licenses": [],
  "categories": [
    { "id": 1, "name": "square", "supercategory": "none" },
    { "id": 2, "name": "rectangle", "supercategory": "none" }
  ],
  "images": [
    { "id": 0, "file_name": "img_000000.jpg", "width": 640, "height": 640 }
  ],
  "annotations": [
    {
      "id": 1,
      "image_id": 0,
      "category_id": 3,
      "bbox": [x, y, w, h],
      "area": 902.0,
      "iscrowd": 0
    }
  ]
}

Per task:

• detection — bbox [x, y, w, h] and area; no segmentation key.
• segmentation — adds "segmentation": [[x1, y1, x2, y2, …]], the filled-shape polygon.
• obb — stores the four oriented-box corners as a 4-point "segmentation": [[x1, y1, x2, y2, x3, y3, x4, y4]] alongside the axis-aligned bbox. COCO has no native oriented-box field, so the corner polygon is the OBB carrier.

All coordinates are in pixels and clamped to the image extent.

YOLO output

Layout (Ultralytics-style):

shapes_yolo/
  images/{train,val,test}/img_000000.jpg
  labels/{train,val,test}/img_000000.txt
  data.yaml

data.yaml lists only the splits that were written:

path: .
train: images/train
val: images/val
test: images/test
nc: 4
names:
  0: square
  1: rectangle
  2: triangle
  3: circle

Each label file has one row per object. Class ids are 0-based; all coordinates are normalized to [0, 1] and clamped:

Task	Row format
detection	cls cx cy w h
segmentation	cls x1 y1 x2 y2 … xn yn
obb	cls x1 y1 x2 y2 x3 y3 x4 y4
keypoints	cls cx cy w h x1 y1 v1 … x16 y16 v16 (53 tokens)

Example detection rows (labels/train/img_000000.txt):

2 0.512000 0.334000 0.180000 0.210000
0 0.744000 0.618000 0.150000 0.150000

In-memory streaming and training feed

Generation and writing are decoupled: SyntheticGenerator produces Sample objects, and writers persist them. Image pixels always stream: when you iterate SyntheticGenerator or drive a writer directly, only one Sample is materialized at a time, so you can feed a training loop with no disk round-trip and generation never holds more than one image in memory. This one-sample guarantee covers direct generator and writer iteration only — wrapping the source in a batching or multi-worker DataLoader (see below) is the exception. Label bookkeeping depends on the format: the YOLO writer emits one label file per image and the in-memory SyntheticIterableDataset retains nothing, so both stay memory-bounded regardless of num_images. The COCO writer emits a single JSON document per split, so it retains lightweight per-image and per-annotation metadata records (no pixels) in memory — O(n) in the split's image and annotation counts — until that split is written.

Iterate samples directly (no I/O):

# phmdoctest:skip
import numpy as np
from fuse_augmentations.data import SyntheticConfig, SyntheticGenerator

gen = SyntheticGenerator(SyntheticConfig(img_size=256))
for sample in gen.generate(1000, seed=0):  # lazy: one Sample at a time
    train_step(sample.image, sample.annotations)

Or plug straight into a PyTorch DataLoader via SyntheticIterableDataset (exported from data.datasets). Because object annotations are ragged (a variable number per image), pass a custom collate_fn; each batch is then a list[Sample]:

from torch.utils.data import DataLoader

from fuse_augmentations.data import SyntheticIterableDataset

ds = SyntheticIterableDataset(num_images=8, img_size=64, class_mode="shape", seed=0)
loader = DataLoader(ds, batch_size=4, collate_fn=list)

print(sum(len(batch) for batch in loader))

Total samples yielded across the DataLoader batches

8

Set num_workers>0 for multi-process loading: SyntheticIterableDataset is worker-shard aware, so each worker generates a disjoint, deterministically-seeded slice of num_images. Note that a DataLoader relaxes the one-sample bound: a batch materializes up to batch_size samples at once, prefetching holds prefetch_factor batches per worker, and each of num_workers workers materializes its own sample concurrently — so in-memory peak scales with batch_size × num_workers, not with a single image. When writing to disk, generate_dataset streams the same single sample source through per-split views, so image pixels never accumulate; peak memory then depends on the writer — bounded for YOLO, and O(n) COCO metadata (per the note above) for COCO.

Reproducibility and tuning

Pass seed= for byte-identical output; all randomness flows through a single numpy.random.Generator. Tune content through generate_dataset(**config_kwargs) or a full SyntheticConfig:

import tempfile

from fuse_augmentations.data import SplitRatios, generate_dataset

with tempfile.TemporaryDirectory() as out_dir:
    counts = generate_dataset(
        out_dir,
        num_images=200,
        fmt="yolo",
        task="obb",
        split_ratios=SplitRatios(train=0.8, val=0.2, test=0.0),
        img_size=64,
        max_objects=15,
        seed=42,
    )

print(counts)

Per-split image counts for the 80/20 OBB split

{'train': 160, 'val': 40}

SyntheticConfig knobs: img_size, min_objects/max_objects, min_size_ratio/max_size_ratio, overlap_iou, boundary_tolerance, rotate, background, class_mode. Overlapping candidates (IoU above overlap_iou) and out-of-bounds candidates (more than boundary_tolerance outside the frame) are rejected during placement.

End-to-end example

examples/generate_synthetic_dataset.py writes every format × task combination and prints the per-split counts:

python examples/generate_synthetic_dataset.py --outdir shapes_out --num-images 50 --seed 0
